Simple Line Geometry of Cyclic Points
dwlingeom
Example

MatLab: Frequently Used Codes

Major Reference Source: MatLab Verson 7.0

MatLab Package is designed for presentations, and therefore all data stored in arrays can be presented graphically.

Simple Line Geometry of Cyclic Points

Points are equally spaced in the form of a circle can be used to plot some simple line geometry by joining data points with lines.

dwlingeom

Code:

function varargout=dwlingeom(varargin)
%dwlingeom plots 2D line polygon
%
% dwlingeom
% to plot a 100-sided line polygon with circumcircle centre at [0,0] and radius of circumcircle equals to 1.
%
% varargout: ([],[a],[b],[c])
%
% varargint: ([a],[b],[c],[d])
%
% dwlingeom(n)
% for n=1, one single point is plotted at y equals to 0 and x equals to 0 plus offset radius 1 based on circumcircle centre at [0,0].
% for n=2, a line is plotted parallel to x-axis at y equals to 0 and x equals to 0 plus offset radius 1 based on circumcircle centre at [0,0].
% for n>=3, a line polygon of n sides is plotted.
% to plot a n-sided line polygon with circumcircle centre at [0,0] and radius of circumcircle equals to 1.
%
% dwlingeom(n,r)
% to plot a n-sided line polygon with circumcircle centre at [0,0] and radius of circumcircle equals to r.
%
% dwlingeom(n,r,x)
% to plot a n-sided line polygon with circumcircle centre at [x,0] and radius of circumcircle equals to r.
%
% dwlingeom(n,r,x,y)
% to plot a n-sided line polygon with circumcircle centre at [x,y] and radius of circumcircle equals to r.
%
% ---------
% Copyright (c) 2014, All Right Reserved, http://sideway.hk/
% LastChanged:20/06/2014
% version:000.00001 created 20/06/2014 from sideway.hk
%
%
if nargin==0
n=100;r=1;x=0;y=0;
elseif nargin==1
n=varargin{1};r=1;x=0;y=0;
elseif nargin==2
n=varargin{1};r=varargin{2};x=0;y=0;
elseif nargin==3
n=varargin{1};r=varargin{2};x=varargin{3};y=0;
elseif nargin==4
n=varargin{1};r=varargin{2};x=varargin{3};y=varargin{4};
else
error('in argument more than four');
end
[a,b]=dwcirspace(n,r,x,y);
if nargout==0
plot(a,b);
elseif nargout==1
ha=plot(a,b);
varargout{1}=ha;
elseif nargout==2
ha=plot(a,b);
varargout{1}=ha;
varargout{2}=[a,b];
elseif nargout==3
ha=plot(a,b);
varargout{1}=ha;
varargout{2}=a;
varargout{3}=b;
else
error('out argument more than three');
end

Example

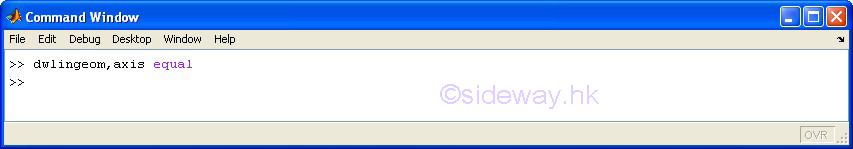

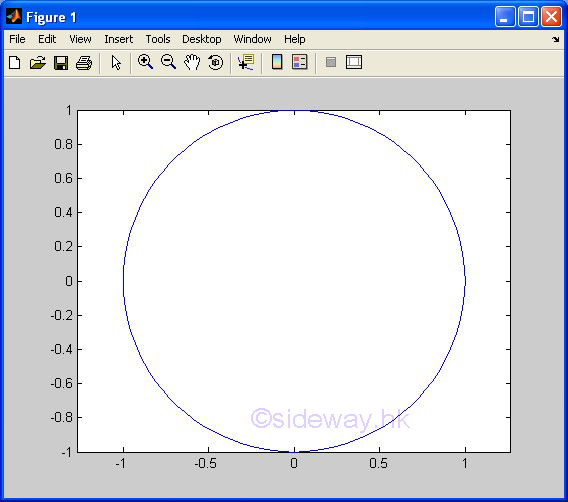

Use function dwlingeom with default value to generate a line 100-sided polygon with circumcircle centre at [0,0] and radius of circumcircle equals to 1.

Example:

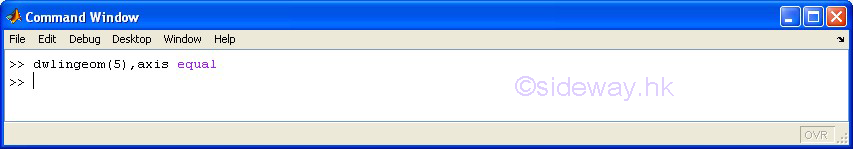

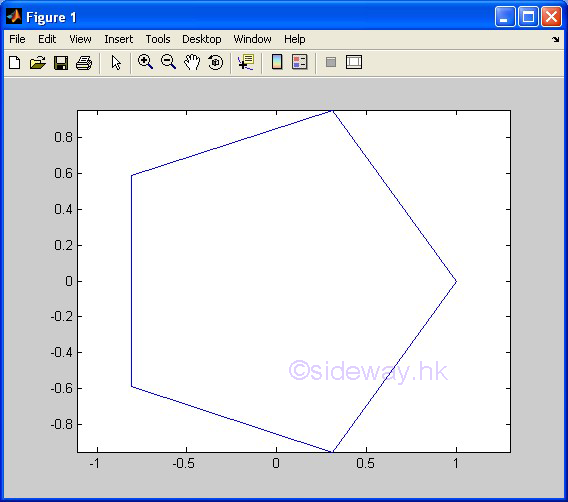

Use function dwlingeom with n=5 to generate a line regular pentagon with circumcircle centre at [0,0] and radius of circumcircle equals to 1.

Example:

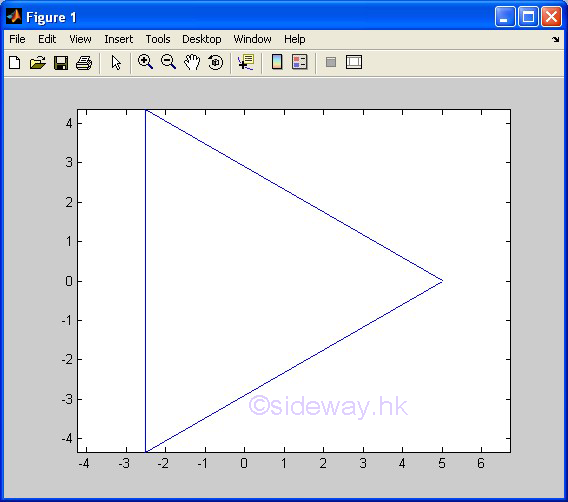

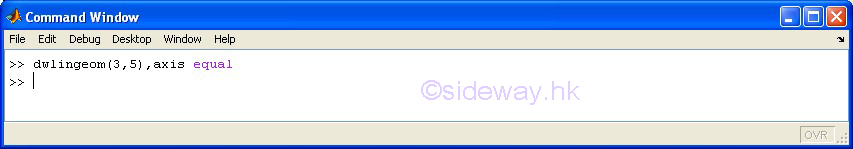

Use function dwlingeom with n=3 to generate a line equilateral triangle with circumcircle centre at [0,0] and radius of circumcircle equals to 5.

Example:

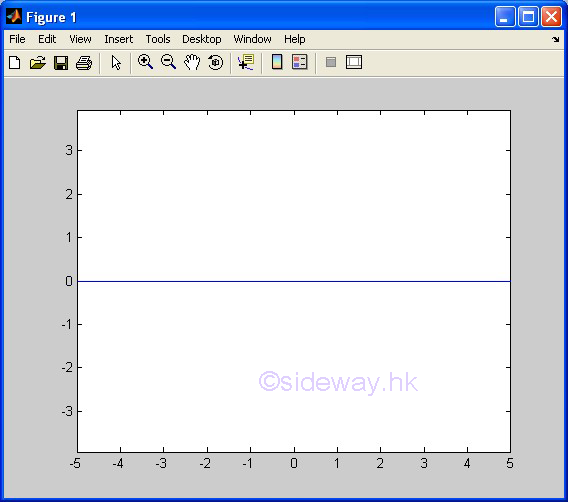

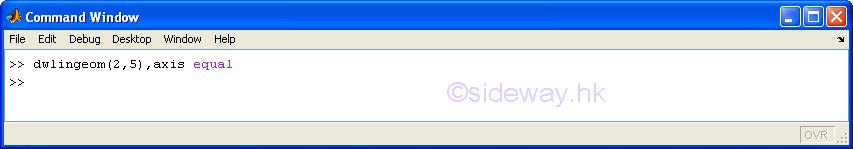

Use function dwlingeom with n=2 to generate a line with circumcircle centre at [0,0] and radius of circumcircle equals to 5, i.e. a line from [5,0] to [-5,0].

Example:

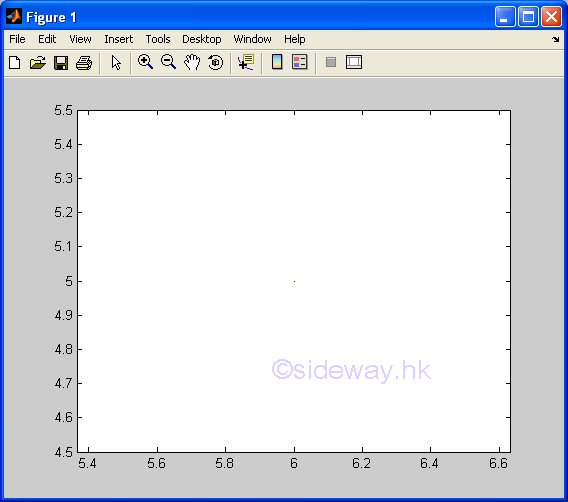

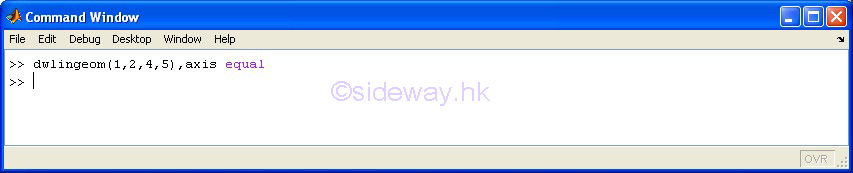

Use function dwlingeom with n=1 to plot a point at circle centre [4,5] with circle radius r equal to 2, i.e. a point at [6,5].

Example:
